How to Use VLOOKUP in Excel (Step-by-Step Example)

VLOOKUP is one of Excel’s most commonly used formulas. It allows you to search for a value in a table and return related data from another column in the same row.

In this example, we will use VLOOKUP to convert a province code into a full province name.

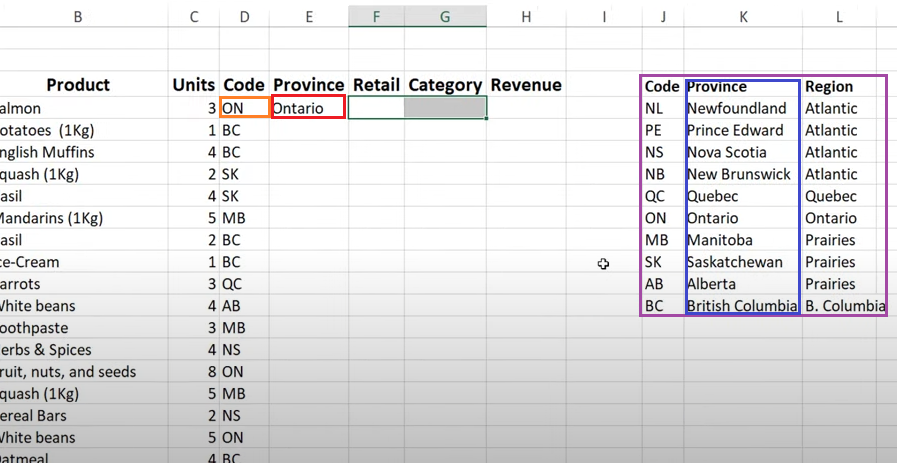

The VLOOKUP Formula in this Example

=VLOOKUP(D4,$J$3:$L$13,2,0)

The VLOOKUP formula was entered in cell E4.

Breaking Down the Formula

Each part of the formula has a specific purpose:

D4

The cell that contains the value you want to look up.

In this example, D4 contains the value ON, which is the province code we want to translate into a full name.

$J$3:$L$13

The table array. This is the range of cells where Excel will search for the lookup value.

• Column J contains the province codes
• Column K contains the province names
• Column L contains the region names

The dollar signs lock the range so it does not move if the formula is copied to other cells.

2 = Column index Number

The column index number.

This tells Excel which column from the table array to return data from:

• Column 1 = J (Code)
• Column 2 = K (Province)
• Column 3 = L (Region)

Because we want the province name, we use 2.

0 – zero in the formula

The match type.

• 0 = Exact match
• 1 = Approximate match

Since province codes must match exactly, we use 0.

How the Formula Works

1. Excel looks at the value in D4, which is ON.
2. It searches for ON in the first column of the table range J3:J13.
3. Excel finds ON in cell J9.
4. Because column index 2 was specified, Excel returns the value from the second column of that row.
5. The value in K9 is Ontario.
6. Ontario is displayed as the result in cell E4, where the VLOOKUP formula was entered.
